Laptop Mechanical Keyboard Switch Tester 400 x 300 mm Clamp Area

Laptop Mechanical Keyboard Switch Tester 400 x 300 mm Clamp Area

    • Laptop Mechanical Keyboard Switch Tester 400 x 300 mm Clamp Area
    • Laptop Mechanical Keyboard Switch Tester 400 x 300 mm Clamp Area
  • Laptop Mechanical Keyboard Switch Tester 400 x 300 mm Clamp Area

    Szczegóły Produktu:

    Miejsce pochodzenia: Made in China
    Nazwa handlowa: Infinity Machine
    Orzecznictwo: CE, ISO
    Model Number: RS-8330B3

    Zapłata:

    Minimum Order Quantity: 1 set
    Cena: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Clamp area: 400x300mm Up and down range of testing table: 0~100mm (Hand moving)
    Test load: 80gf, 10gf, 20gf, 30gf, 50gf (base load) Dimension: 600x400x720mm
    Weight: About 90 kg Power Supply: AC220V 50Hz 5A or specified by user



    Laptop Mechanical Keyboard Switch Tester 400 x 300 mm Clamp Area



    Model: RS-8330B3



    Purpose:



    This machine is used for life time test of computer keyboard, note-book keyboard, other knobs and switches, can test many parts together at the same time (Every parts can be tested at many different places) Can test Max.120 keys for keyboard.



    Features:



    1. Highest speed is 600times/min (10times/sec.)

    2. Can test top to120 keys for one time, which can satisfy full inspection for keyboard quality control.

    3. Use the AC speed adjustable motor for the driving, with low noise and high durability.

    4. To use the weight to click the keys, the clicking force is adjustable from 100~200gf, the clicking force is precise.

    5. The main structure is use the high hardness steel for the supporting, and us the NSK bearing for the transmission, can make sure the durability of

        the tester.

    6. The testing table is using alum. With anodic oxidation, that can make sure the good looking, there are enough holes for the keyboard fixture

        installation.

    7. Because of using the special transmission design, the max clicking speed can be 360cycles / Min, that can raise the testing efficiency to save the

        testing time.

    8. There are 108pcs weights for option, can meet the full checking for the keyboards (the standard attached weight quantity is 10pcs)

    9. To use the LCD counter, can set the testing cycles from 0~99,999,999, and it has the memory function which can make sure it will not affected by

        accident shut-off of power , when reach the set cycles, the tester will automatically stop.

    10. To use the AUTONIS rotation speed counter, can display the testing speed. Use the sliding block design, can move the fixture forth and back,

          left and right, can test any key.



    Specification:



     Model  RS-8330B3
     Clamp area (WxD)  400x300mm
     Up and down range of  testing table

     0~100mm (Hand moving)

     Test load

     base load 80gf, 10gf, 20gf, 30gf, 50gf can be added accordingly

     Test speed  36~240 times/min or 120~360 times/min
     Test cycle  0~99,999,999times (Adjustable)
     Dimension (WxDxH)  600x400x720mm
     Weight  About 90 kg
     Power Supply  AC220V 50Hz 5A or specified by user

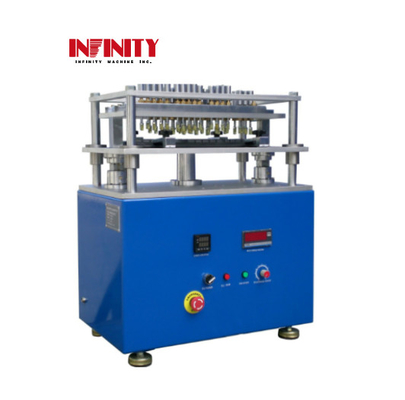

    Picture:



    Laptop Mechanical Keyboard Switch Tester 400 x 300 mm Clamp Area
