| Miejsce pochodzenia: | Made in China |
| Nazwa handlowa: | Infinity Machine |
| Orzecznictwo: | CE, ISO |
| Model Number: | RS-8330C-8 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Cena: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Test amount: | 8 stations | Test load: | 100gf-2000gf (or specified) |
|---|---|---|---|
| Test speed: | 1-60 times/min or 30-240 times/min | Adjustable table height: | 0-100mm |
| Dimension: | 1350x460x1100mm | Weight: | 260kg |
| Test cycle: | 1~999999times (cycle) | Power Supply: | AC220V 50Hz 5A or specified by user |
| High Light: | force testing machine,button pull test machine |
||

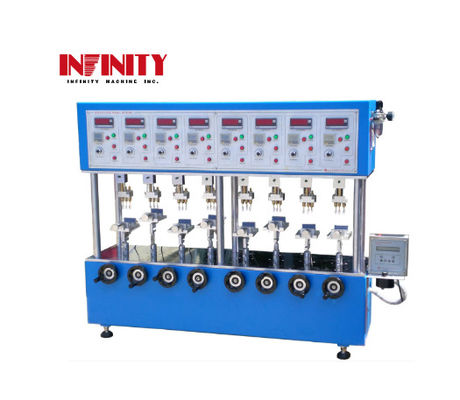

Mobile Phone Keystroke Force Measurement Equipment with Eight Station
Model: RS-8330C-8
Purpose:
This equipment is applied for keystroke life-span test of computer mouse, telephone, mobile phone in-car system, PDA, Bluetooth earphone, Remote control, MP3/CD and the other non-listed small consuming electronic products as well as connectors & springs life-Span testing.
Features:
1. 3 & 5 & 8 testing stations can be optional.
2. Every testing station is independent control & working: times/conduct/on/off/speed &etc.
3. Every testing station can test 3 keys at one time, pressure is adjustable and with calibrating system to control the hitting force.
4. Adopt Japan Panasonic motor driver, with low noise and long testing life time.
Specification:
| Model | RS-8330C-8 |
| Test amount | 8 stationa |
| Test load | 100gf~2000gf (or specified) |
| Test speed | 1~60times/min or 30～240times/min (or specified) |
| Test cycle | 1~999999times (cycle) |
| Adjustable table height | 0~100mm |
| Dimension (WxDxH) | 1350x460x1100mm |
| Weight | 260 kg |
| Power Supply | AC220V 50Hz 5A or specified by user |
Picture:
