LCD Monitor Torsion Test Machine 150 kgf.cm Computerized 220 V 50 Hz

LCD Monitor Torsion Test Machine 150 kgf.cm Computerized 220 V 50 Hz

  • LCD Monitor Torsion Test Machine 150 kgf.cm Computerized 220 V 50 Hz
  • LCD Monitor Torsion Test Machine 150 kgf.cm Computerized 220 V 50 Hz
LCD Monitor Torsion Test Machine 150 kgf.cm Computerized 220 V 50 Hz
Szczegóły Produktu:
Miejsce pochodzenia: Made in China
Nazwa handlowa: Infinity Machine
Orzecznictwo: CE, ISO
Model Number: RS-6700
Zapłata:
Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontakt
Szczegółowy opis produktu
Control method: Touching screen+PLC Test load (max): 150kgf.cm
Testing table adjustable range: 0~300mm ( motor ) Test speed adjustable range: 1~30 times/min
Max test rang: 32” LCD Dimension: 1130x745x1550mm
Weight: 200 kg Power supply: AC220V 50Hz 5A or specified by user
High Light:

torque testing machine

,

torsion spring tester



LCD Monitor Electronic Torque Tester 150 kgf.cm Computerized 220 V 50 Hz



Model: RS-6700



Purpose:



This tester is used for testing the hinge of LCD MONITOR, LCD TV, PLASMA TV, to check the holding capability of the hinge and to check if the plastic body is damage by getting higher resistance of hinge after many opening and closing.



Features:



All the testing conditions is set at touching panel directly;

Test angle between 0-180 °, the tolerance is within 1 °, as it is controlled by servo motor driver.

Adopt Mitsubishi LCD touching screen+PLC as program control with high quality, can display the right angle and speed in swing testing.

Adopt motor driving up and down testing table, with micro adjusting function and axis center matching function, to assure effect of test grip and testing accuracy.

Adopt sever motor driver which is low noise, big torque, durable using.

Force from both side to keep balance, to make sure stable testing condition.

Can set the pause time, rotating speed (open & close can be set to different speed).



Specification:



 Model  RS-6700 ( Motor )
 Control method  Touching screen+PLC
 Test load (max)  150kgf.cm
 Testing table adjustable range  0~300mm ( motor )
 Test speed  1~30 times/min
 Max test rang  32” LCD
 Test angle  0~180°
 Test cycle  1~999,999times (cycle)
 Dimension (WxDxH)  1130x745x1550mm
 Weight  200 kg
 Power supply  AC220V 50Hz 5A or specified by user



Picture:

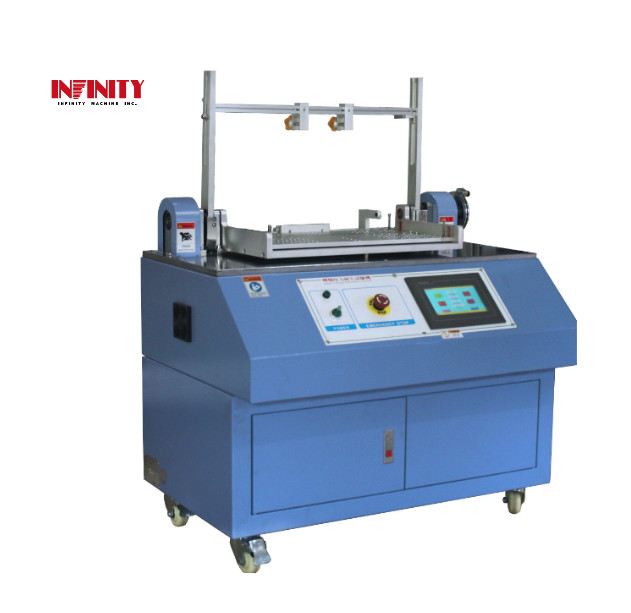

LCD Monitor Torsion Test Machine 150 kgf.cm Computerized 220 V 50 Hz 0

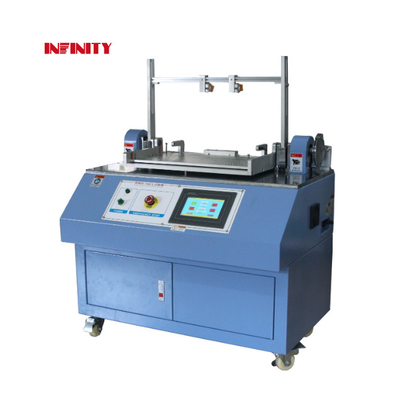

LCD Monitor Torsion Test Machine 150 kgf.cm Computerized 220 V 50 Hz 1
