Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed

Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed

  • Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed
  • Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed
Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed
Szczegóły Produktu:
Miejsce pochodzenia: Made in China
Nazwa handlowa: Infinity Machine
Orzecznictwo: CE, ISO
Model Number: RS-8105
Zapłata:
Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontakt
Szczegółowy opis produktu
Turn plate: Thickness 10mm Weight: 170kg
Bending speed: 10~40mumbers/min(adjustable) Dimension: 830x750x1140mm
Power: AC220V 5A or specified by user
High Light:

bend test equipment

,

cable testing machine



Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed



Model: RS-8105



Application:

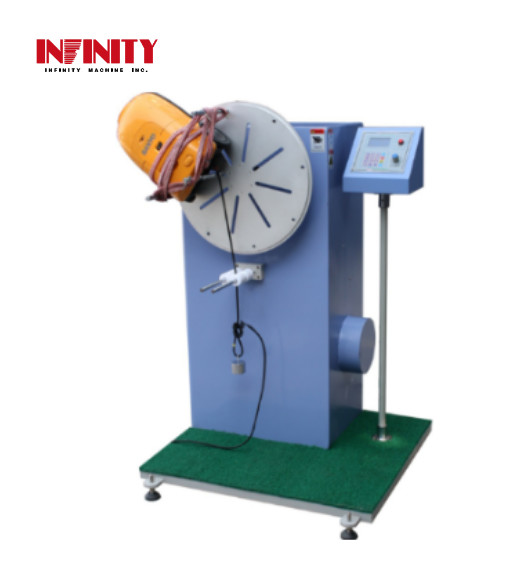

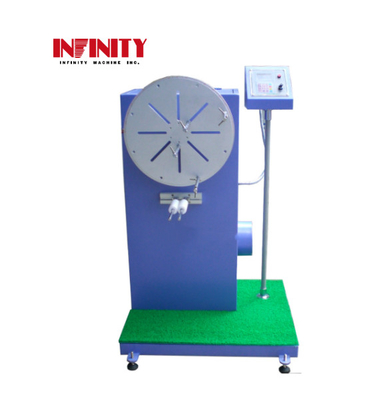

Fix the appliance (connector, dryer, cleaner, etc.) on turnplate, the outlet of the power cable forward to the center of the turnplate. Pull the cable vertically with load at rated bending speed, angle and times then to begin the bending test. When the tester stops automatically, check the jacket damage and the breakage rate of conductors.



Specification:



 Model  RS-8105
 Turn plate  Thickness 10mm
 Weight  300g, 500g
 Bending speed  10~40mumbers/min(adjustable)
 Bending angle  40°, 60°, 90° per L/R side
 Dimension (WxDxH)  830x750x1140mm
 Weight  170kg
 Power supply  AC220V 5A or specified by user



Package:



Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed 0



Cord Bend Test Equipment / Tensile testing machine 10 - 40 mumbers/min Speed 1
