| Miejsce pochodzenia: | Made in China |
| Nazwa handlowa: | Infinity Machine |
| Orzecznictwo: | CE, ISO |
| Model Number: | Z-UV |
| Minimum Order Quantity: | 1 |
|---|---|
| Cena: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Temp-range: | RT+10℃~70℃ | Humid-range: | 90% RH ~98% RH |
|---|---|---|---|
| Lamps type: | UV-A, 40W / UV-B, 40W | UV light wavelength: | 315～400nm/280～315nm |
| Light Size: | W450xH260mm | Power supply: | AC220V 50Hz 3KW or specified by user |
| Main unit dimension: | 580x280x1450mm | Main unit weight: | 130 Kg |
| High Light: | plastic testing equipments,plastic testing instruments |
||

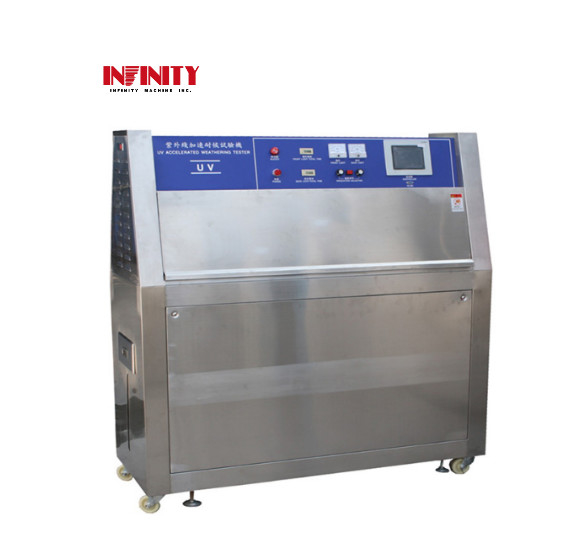

UV Lamps Plastic Testing Machines / UV Accelerated Weathering Tester ISO 4892-3
Model: Z-UV
Purpose:
Plastic Testing Machine adopts fluorescent lamp simulating the UV spectrum of sun shine, combined with temperature control, humidity system. It can simulates various of conditions such as temperature, shining strength and humidity to evaluate the breakage, peeling, pulverization, oxidization of the specimen.
Standard:
This UV accelerating weather tester is suitable for liable tests in lots of industries. It is according to below standard to make, GB/T14522-93,GB/T16585-1996 and GB/T16422.3-1997; And complied with international testing standards as:ASTM D4329,D499,D4587,D5208,G154,G53；ISO 4892-3,ISO 11507；EN 534；EN 1062-4, BS 2782；JIS D0205；SAE J2020.
Features:
This machine provides good UV simulation, low maintance cost, easy operation. It runs itself by programme automatically with stable light.
Specification:
| Model | Z-UV |
| Temperature range | RT+10℃~70℃ |
| Humidity range | 90% RH ~98% RH |
| Distance between lamps | 70±2mm |
| Distance between specimen and lamp | 50±2mm |
| Lamps type | UV-A, 40W / UV-B, 40W |
| UV light wavelength | 315～400nm/280～315nm |
| Standard test shelf | 75x300mm(3x12”)/23 or 100x300mm(4x12”)/15 |
| Lamps amount | 8 sets |
| Nozzle: | 12 pieces |
| Light Size: | W450xH260mm |
| Main unit dimension (WxDxH) | 580x280x1450mm |
| Main unit weight | 130 Kg |
| Power supply | AC220V 50Hz 3KW or specified by user |
Internal structure:
