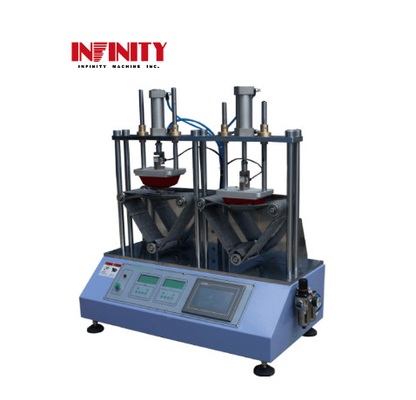

Remote Control Hydraulic Compression Testing Machine Digital SMC Component

Remote Control Hydraulic Compression Testing Machine Digital SMC Component

Remote Control Hydraulic Compression Testing Machine Digital SMC Component

Szczegóły Produktu:

Miejsce pochodzenia: Made in China
Nazwa handlowa: Infinity Machine
Orzecznictwo: CE, ISO
Model Number: RS-8500-2

Zapłata:

Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Skontaktuj się teraz
Szczegółowy opis produktu
Compressing force setting: 100~1200N (adjust continuously) Test stroke (max): 100mm
Test cycle: 1~999,999times (cycle) Dimension: 1050x470x960mm
Weight: 160kg Power supply: AC220V 50Hz 5A or specified by user



Remote Control Hydraulic Compression Testing Machine Digital SMC Component



Model: RS-8500-2



Application:



The machine is applicable for the soft compression test of mobile phone, remote control and submachine and the equipment adopts color screen and touch screen +PLC programmable logic controller for motion control, with simple operation, stable and reliable performance and convenient maintenance.



Characteristics:



The machine adopts Japanese SMC cylinder as the extrusion driving source with precise reducing valve, which can control extrusion force accurately.



The machine adopts high elastic rubber and denim to exert soft pressure to the product to imitate the product to be used to estimate the reliability after bearing certain pressure;



The machine adopts color screen and touch screen (displayed in Chinese) + PLC programmable logic controller as motion control, including the setting of press frequency, press delay and press times etc. and can display the tested times and the press force (unique in domestic);



The elasticity of denim is adjustable and with a larger testing space and wider applicability;



Specification:



 Model  RS-8500-2 (precise)
 Compressing force setting  100~1200N (adjust continuously)
 Test stroke (max)  100mm
 Test speed  10~30 times/min
 Test cycle  1~999,999times (cycle)
 Dimension (WxDxH)  1050x470x960mm
 Weight  160kg
 Power supply  AC220V 50Hz 5A or specified by user



Picture:

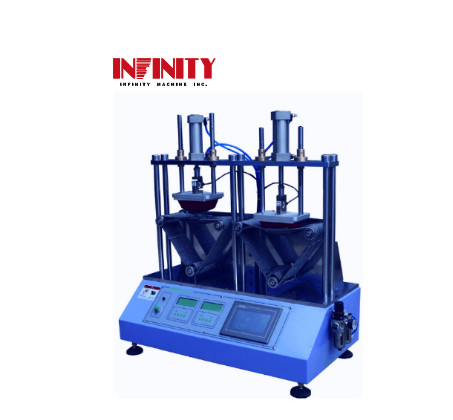

Remote Control Hydraulic Compression Testing Machine Digital SMC Component
