0 N - 15 N LCD / Touch Screen Super Click Tester Computer Control 0.5MPa

0 N - 15 N LCD / Touch Screen Super Click Tester Computer Control 0.5MPa

0 N - 15 N  LCD / Touch Screen Super Click Tester Computer Control 0.5MPa

Szczegóły Produktu:

Miejsce pochodzenia: Made in China
Nazwa handlowa: Infinity Machine
Orzecznictwo: CE, ISO
Model Number: RS-5610C

Zapłata:

Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Skontaktuj się teraz
Szczegółowy opis produktu
Controller: Computer Control X axis movement range: 0~300mm (specified before order)
Y axis movement range: 0~300mm (specified before order) Positioning accuracy: 0.05mm
Air pressure: ≥0.5MPa Dimension: 750x750x660mm
Weight: About 120kg Power source: AC220V 50Hz 5A or specified by user



0 N - 15 N LCD / Touch Screen Super Click Tester Computer Control 0.5MPa



Model: RS-5610C



Purpose:



This tester is used for pressing rolling, clicking, Drawing test for small LCD, touching screen, such as mobile phone.



Test Item:



1. Touching pen clicking test: 0-15N (or set).

2. Touching pen drawing test: drawing line on touching screen as setting.;

3. Mobile surface abrasion test: with alcohol / eraser as testing assistance.



Specification:



 Model  RS-5610C (Computer Control)
 X-axis Moving range  0~150mm or 0~300 (specified before order)
 Y-axis Moving range  0~150mm or 0~300 (specified before order)
 Z-axis click cylinder  0~20mm
 Positioning accuracy  0.05mm
 Moving speed  0~200mm/sec
 Pressure range  80~1500gf (or specified)
 Load  20g, 30g, 150g, 250g
 Air pressure  ≥0.5MPa
 Dimension (WxDxH)  750x750x660mm
 Weight  About 120kg
 Power supply  AC220V 50Hz 5A or specified by user

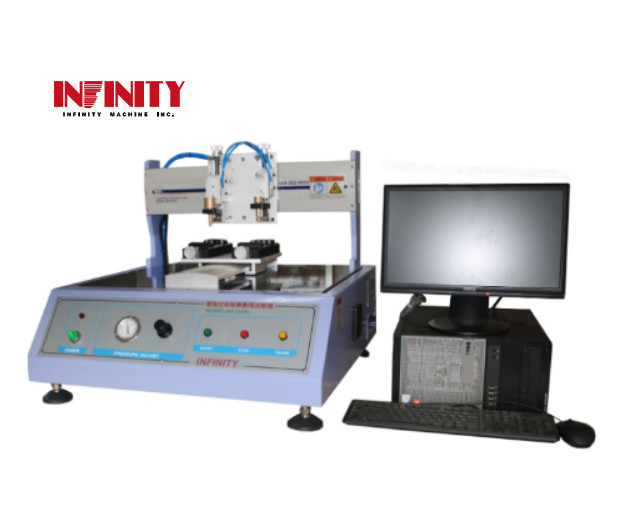

Picture:



0 N - 15 N  LCD / Touch Screen Super Click Tester Computer Control 0.5MPa



0 N - 15 N  LCD / Touch Screen Super Click Tester Computer Control 0.5MPa
