Computerized Extract Connector Test Machine 500 N for Life-time Test

Computerized Extract Connector Test Machine 500 N for Life-time Test

  • Computerized Extract Connector Test Machine 500 N for Life-time Test
  • Computerized Extract Connector Test Machine 500 N for Life-time Test
Computerized Extract Connector Test Machine 500 N for Life-time Test
Szczegóły Produktu:
Miejsce pochodzenia: Made in China
Nazwa handlowa: Infinity Machine
Orzecznictwo: CE, ISO
Model Number: RS-8115A
Zapłata:
Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontakt
Szczegółowy opis produktu
Testing stroke range: 0~35mm Test speed: 5~60times/min±1time
Insert & Extract value: 50kgf(500N) Dimension: 850x330x380mm
Weight: 35kg Power supply: 1∮ AC220V 50Hz 3A or specified by user
High Light:

phase rotation tester

,

electronic tester

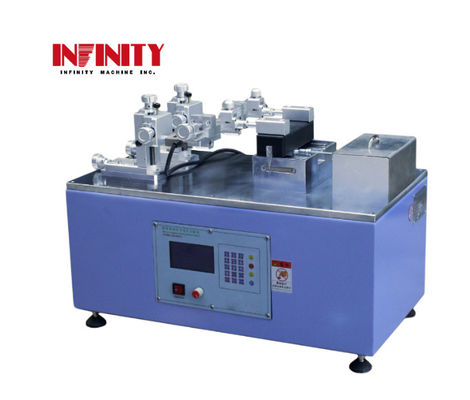

Computerized Extract Connector Test Machine 500 N for Life-time Test



Model: RS-8115A



Application:



This machine is used for insert and extract life time test of all kind of connector.



Features:



With AC motor driving the offset block to work, round stroke can be adjusted continuously, the speed can be adjusted too; With up-down, left-right adjusting fixture to make sure the accuracy and precision for insert and extract, show the life time of products. With special gauge to show insert value, extract value, also the peak value for insert and extract. Can record 10sets test data, also can connect with printer to print the testing report.



Specification:



 Model  RS-8115A
 Testing stroke range  0~35mm
 Test speed  5~60times/min±1time
 Test time range  1~999,999times
 Insert & Extract value  50kgf(500N)
 Dimension (WxDxH)  850x330x380mm
 Weight  35kg
 Power supply  1∮ AC220V 50Hz 3A or specified by user



Fixture:



Computerized Extract Connector Test Machine 500 N for Life-time Test 0



Computerized Extract Connector Test Machine 500 N for Life-time Test 1
