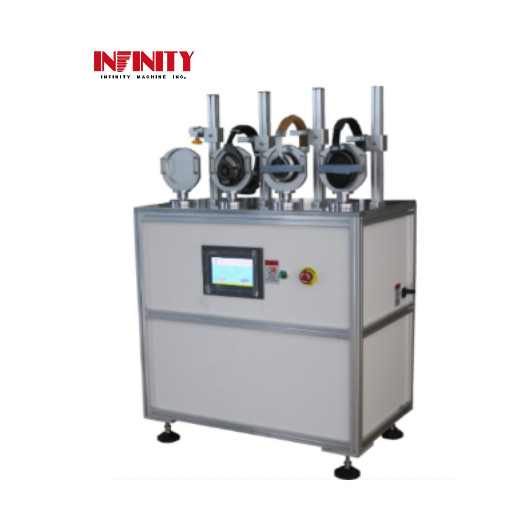

2 Stations Electronic Product Tester / Headset Torsional Rigidity Test

2 Stations Electronic Product Tester / Headset Torsional Rigidity Test

  • 2 Stations Electronic Product Tester / Headset Torsional Rigidity Test
2 Stations Electronic Product Tester / Headset Torsional Rigidity Test
Szczegóły Produktu:
Miejsce pochodzenia: Made in China
Nazwa handlowa: Infinity Machine
Orzecznictwo: CE, ISO
Model Number: RS-8106C
Zapłata:
Minimum Order Quantity: 1 set
Cena: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Kontakt
Szczegółowy opis produktu
Headphone specimen: 2pcs (4 earphone test together) Driver mode: AC servo motor
Torque angle: 0~±180° adjustable Test speed range: 10~60times/min
Counter: 1~999999 times available Machine dimension: W850 x D360 x H 1200mm
Machine weight: 125kg Power: AC220V 50Hz 5A or specified by user
High Light:

electrical testing machine

,

electronic tester



2 Stations Electronic Product Tester / Headset Torsional Rigidity Test



Model: RS-8106C



Purpose:



Headphone earphone rotating axle do torsion life time test. clamping the earphone on left/right fixture, headphone band fit on center support arm, set the specific angle, rotate speed, left earphone and right earphone rotate from different way, check the specimen status once tested to the set times.



Feature:



1; adopt MGCS TFT7 true-color LCD + Mitsubishi PLC controller, can set rotate angle, test speed, test internal stopping time;

2; adopt Japan Panasonic servo motor driver, high speed & low noise, working stable, quality reliable.

3; can test 2sets(4pcs earphone) for one time, high efficient, can use Velcro and positioning fixture to fit the headphone.



Specification:



 Specimen testing sets  2pcs (4 earphone test together)
 Driver mode  AC servo control
 Torque angle  0~±180° adjustable
 Test speed range  10~60times/min
 Counter  touchable screen, 1~999999 times can be set
 Dimension  W850 x D360 x H 1200mm
 Weight  Around 125kg
 Power supply  AC220V 50Hz 5A or specified by user
