| Miejsce pochodzenia: | Made In China |
| Nazwa handlowa: | Infinity Machine |
| Orzecznictwo: | CE ISO |
| Numer modelu: | ID6150 |
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | Negotiate |
| Szczegóły pakowania: | Clear sheet+sponge+wood carton |
| Czas dostawy: | 20-30 days after order confirmed |
| Zasady płatności: | TT PAYPAL Moneygram and so on |
| Możliwość Supply: | 200 sets / month |
| Trasa w osi Y:: | 300 mm | Wysokość testowa:: | 50-1200mm |
|---|---|---|---|
| Zasilanie robocze:: | AC220V 2A 50Hz | Rozmiar sprzętu:: | 1140×1200×2700mm |
| Błąd wysokości:: | ±1 mm | Specyfikacja kulki akrylowej: | 160 g lub według specyfikacji |
| Nazwa produktu: | Trójosiowa automatyczna maszyna do badań uderzeń kulkowych | Trasa osi X:: | 420 mm |

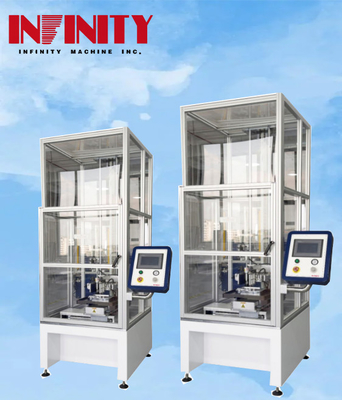

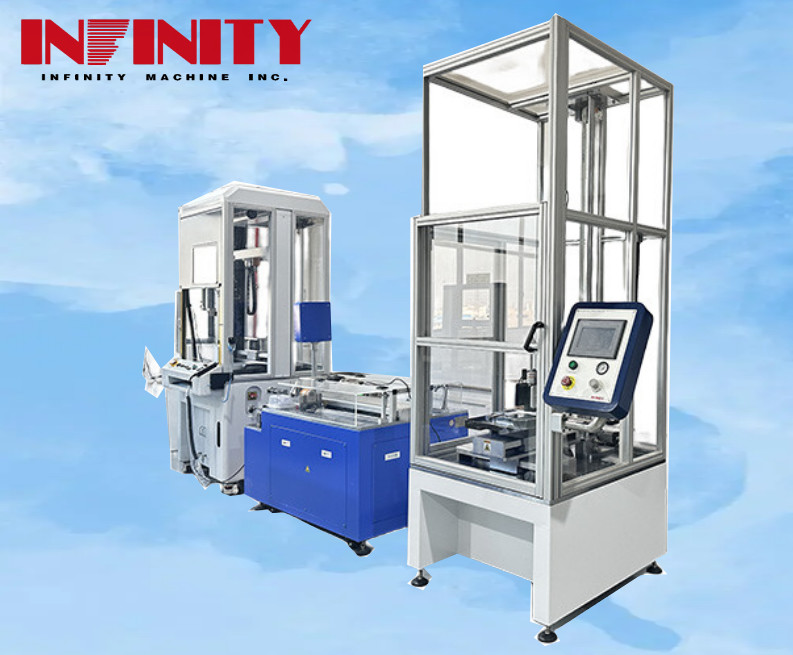

1140×1200×2700mm Drop Ball-impact Tester for Measuring Y-axis Velocity Range 1-100mm/s

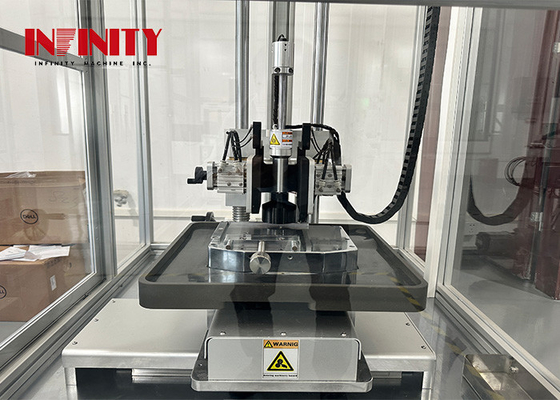

The equipment uses vacuum adsorption method to absorb steel balls, which is more accurate than the mechanical claw drop method. This ensures that the test results are precise and reliable. Additionally, the integrated high-speed X-Y platform can be programmed to realize automatic multi-point cycle tests, thereby improving test efficiency. The X, Y, and Z axis are driven by Japan Panasonic servo motor, precision ball screw drive, low noise, and durable use. The language has simplified/English interface, making it suitable for global customers. The software operation interface is simple and easy to operate. The program has a designed anti-stay function to ensure the accuracy and safety of each test.
The Three-axis Automatic Drop Ball Machine has a unique automatic reset and automatic pickup function, which can realize unattended and automatic cycle test. According to the conventional test setting parameters, the steel ball impacts on the sample during starting and running, and the steel ball springs and is clamped by the splint to prevent secondary impact on the sample. When the XY platform is positioned at the position of the cone hole and the ball coaxis, the cylinder is released and drops the steel ball, and the steel ball is automatically reset to the center of the cone hole. After the Z axis drops the ball, the cycle is executed. The whole machine adopts a floor structure design, and the operation panel can rotate, allowing the operator to be closer to the test area and more convenient for sample loading and unloading.
The equipment provides the perfect fault detection mechanism of the operation state, and provides the corresponding error information prompt, and conducts real-time detection and processing of servo failure, sensor fault, X, Y, and Z axis limit fault, so as to maximize the protection of personal and equipment safety. The device is equipped with an infrared laser function, which can accurately locate the position of the landing point and facilitate the tester to accurately determine the test position. The test formula is stored in the ROM of the system, which is simple and convenient to read and change the test position. The height error is ±1mm and the working power supply is AC220V 2A 50Hz.
The Three-axis Automatic Drop Ball Machine is a reliable, efficient, and accurate Drop Ball-impact Tester that is suitable for a wide range of applications. It is the perfect equipment for conducting impact tests on electronic products such as mobile phones, tablets, and audio equipment.
Device control interface:
| Product Name | Three-axis Automatic Drop Ball-impact Test Machine |
| Y-axis velocity range | 1~100mm/s |
| X-axis speed range | 1~100mm/s |
| Z-axis velocity range | 1-200mm/s |
| Steel ball specifications | 20g, 500g, Or As Specified |
| Test height | 50-1200mm |
| Plant capacity | 1200W |
| Equipment size | 1140×1200×2700mm |
| Weight of equipment | About 530 Kg |
| Features | The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method. At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency. X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use. Language Has Simplified / English Interface, Suitable For Global Customers. Software Operation Interface Is Simple And Easy To Operate. The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test. Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test. According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample. When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed. The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading. The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety. The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position. The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position. |
The machine adopts PLC control mode, the suction nozzle uses vacuum negative pressure, holding different sizes of steel balls, press the drop button, the suction nozzle, the steel ball will be used as free fall test, impact the surface of the sample, and test the impact resistance of the sample, which is suitable for the impact test of mobile phone, tablet, audio and other electronic products.
Brand Name: Infinity Machine
Model Number: ID6150
Place of Origin: Made In China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Y-axis itinerary: 300mm
Steel ball specifications: 20g, 500g, Or As Specified
Acrylic ball specification: 160g Or As Specified
Test height: 50-1200mm
This product is a Three-axis Automatic Drop Ball-impact Tester, suitable for testing the impact resistance of materials in different industries. The product is designed to test the impact resistance of materials from three different axes, making it an efficient and accurate testing instrument. The drop ball-impact tester comes with steel ball specifications of 20g and 500g, as well as an acrylic ball specification of 160g, allowing for versatile testing options.
Action flow chart:
The Impact Testing Machine product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of highly trained technicians and engineers are available to provide assistance with installation, calibration, maintenance, and repairs. Additionally, we offer training and consultation services to help our customers effectively utilize and manage their equipment. Our goal is to provide reliable and efficient support to ensure our customers' continued success.
Product Packaging:
Shipping:
Here are the frequently asked questions about the Infinity Machine ID6150:
Q: What is the capacity of the ID6150?
A: The ID6150 has a capacity of 150J.
Q: What is the accuracy of the ID6150?
A: The accuracy of the ID6150 is ±0.1J.
Q: What is the delivery time for the ID6150?
A: The delivery time for the ID6150 is 20-30 days after order confirmed.
Q: What certifications does the ID6150 have?
A: The ID6150 has CE and ISO certifications.
Q: What is the packaging for the ID6150?
A: The ID6150 is packaged with clear sheet+sponge+wood carton.
