| Miejsce pochodzenia: | Made In China |
| Nazwa handlowa: | Infinity Machine |
| Orzecznictwo: | CE ISO |
| Numer modelu: | ID6150 |
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | Negotiate |
| Szczegóły pakowania: | Clear sheet+sponge+wood carton |
| Czas dostawy: | 20-30 days after order confirmed |
| Zasady płatności: | TT PAYPAL Moneygram and so on |
| Możliwość Supply: | 200 sets / month |
| Rozmiar sprzętu:: | 1140×1200×2700mm | Zasilanie robocze:: | AC220V 2A 50Hz |
|---|---|---|---|
| Masa urządzenia:: | Około 530 kg | Nazwa produktu: | Trójosiowa automatyczna maszyna do badań uderzeń kulkowych |
| Błąd wysokości:: | ±1 mm | Cechy:: | The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than Th |
| Zakres prędkości osi X:: | 1~100 mm/s | Wydajność instalacji:: | 1200 W |

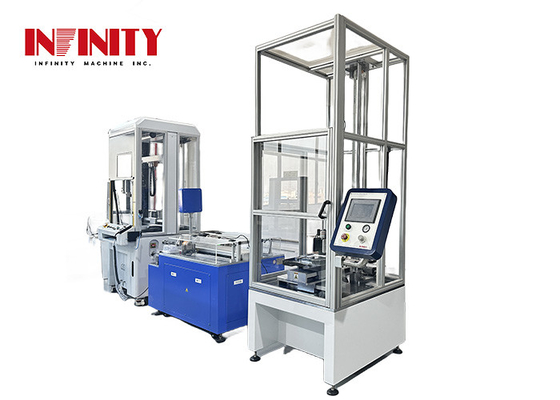

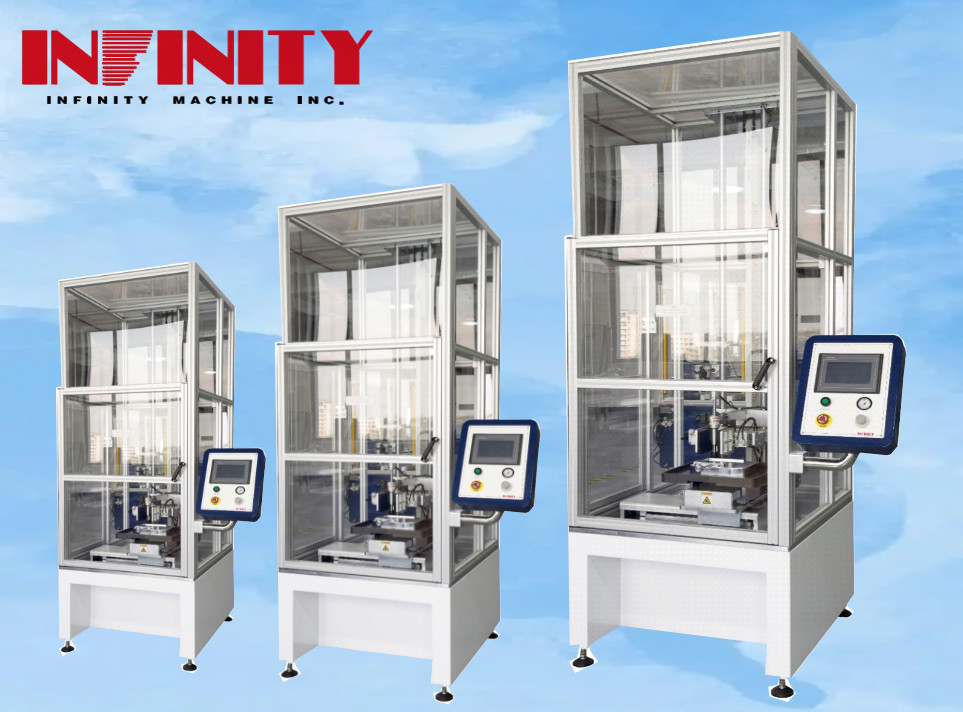

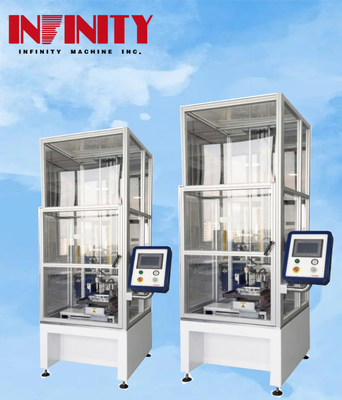

Drop Ball-impact Tester with Z-axis Velocity Range of 1-200mm/s and ±1mm Height Error
The Drop Ball-impact Tester has a Z-axis velocity range of 1-200mm/s and can handle a test height of 50-1200mm. The machine uses vacuum adsorption method to absorb steel balls, which is more accurate than the mechanical claw drop method. With the integrated high-speed X-Y platform, it can be programmed to realize automatic multi-point cycle test and improve the test efficiency. X, Y and Z-axis are driven by Japan Panasonic servo motor, precision ball screw drive, low noise and durable use.
The Three-axis Automatic Drop Ball-impact Test Machine has a Simplified / English interface, which is suitable for global customers. The software operation interface is simple and easy to operate. The program has a designed anti-stay function to ensure the accuracy and safety of each test. The unique automatic reset and automatic pickup function can realize unattended and automatic cycle test.

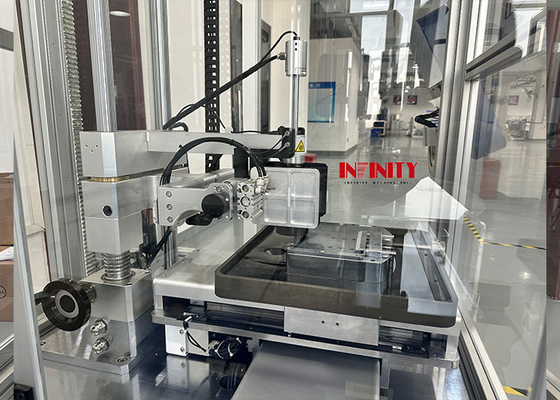

The Drop Ball-impact Tester is designed to prevent secondary impact on the sample. When the XY platform is positioned at the position of the cone hole and the ball coaxis, the cylinder is released and drops the steel ball, and the steel ball is automatically reset to the center of the cone hole. After the Z-axis drops the ball, the cycle is executed. The whole machine adopts floor structure design, and the operation panel can rotate, so that the operator can be closer to the test area, making it more convenient for sample loading and unloading.
The Equipment provides the perfect fault detection mechanism of the operation state, and provides the corresponding error information prompt, and conducts real-time detection and processing of servo failure, sensor fault, X, Y and Z-axis limit fault, so as to maximize the protection of personal and equipment safety. The device is equipped with an infrared laser function, which can accurately locate the position of the landing point and facilitate the tester to accurately determine the test position. The test formula is stored in the ROM of the system, which is simple and convenient to read and change the test position.
The Three-axis Automatic Drop Ball-impact Test Machine is a reliable and efficient testing equipment for various material impact resistance tests. Its X-axis itinerary is 420mm, making it suitable for a wide range of materials testing applications.
| Technical Parameter | Description |
|---|---|
| Product Name | Three-axis Automatic Drop Ball Machine, Drop Ball-impact Tester, Drop Ball-impact Tester |
| Application | The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products. |
| Test Height | 50-1200mm |
| Weight of Equipment | About 530 Kg |
| Equipment Size | 1140×1200×2700mm |
| Working Power Supply | AC220V 2A 50Hz |
| Y-axis Velocity Range | 1~100mm/s |
| Steel Ball Specifications | 20g, 500g, Or As Specified |
| Features | The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method. At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency. X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use. Language Has Simplified / English Interface, Suitable For Global Customers. Software Operation Interface Is Simple And Easy To Operate. The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test. Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test. According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample. When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed. The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading. The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety. The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position. The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position. |
| Height Error | ±1mm |
| X-axis Itinerary | 420mm |
Device control interface:
If you are looking for a high-quality Drop Ball-impact Tester, the Infinity Machine ID6150 is an excellent choice. Made in China, this machine is certified with CE and ISO standards, ensuring its quality and reliability. With a minimum order quantity of 1 and negotiable pricing, this machine is within reach of any testing facility.
The Infinity Machine ID6150 is designed to perform three-axis automatic drop ball tests with high accuracy and efficiency. With its vacuum adsorption method to absorb steel balls, this machine achieves more accurate results than the mechanical claw drop method. The integrated high-speed X-Y platform allows for programmed automatic multi-point cycle testing, improving test efficiency. The X, Y, and Z axes are driven by Japan Panasonic servo motors, ensuring precision, low noise, and durable use.
This machine comes with a simplified/English interface, making it suitable for global customers. The software is easy to operate, with an anti-stay function to ensure accuracy and safety during testing. The automatic reset and pickup function allows for unattended and automatic cycle testing. The steel ball impacts on the sample during starting and running according to conventional test setting parameters. The steel ball springs and is clamped by the splint to prevent secondary impact on the sample.
The Infinity Machine ID6150 has a unique automatic reset and automatic pickup function that can realize unattended and automatic cycle testing. The device is equipped with an infrared laser function that accurately locates the position of the landing point, facilitating the tester to determine the test position accurately. The test formula is stored in the ROM of the system, making it easy to read and change the test position. The machine is designed with a floor structure, and the operation panel can rotate, allowing the operator to be closer to the test area and more convenient for sample loading and unloading.
This Drop Ball-impact Tester has a Y-axis velocity range of 1~100mm/s, an equipment weight of about 530 Kg, and an X-axis itinerary of 420mm. The machine is 1140×1200×2700mm in size, and it comes with clear sheet+sponge+wood carton packaging. Delivery time is 20-30 days after order confirmation, and payment terms include TT, PAYPAL, Moneygram, and other options. The Infinity Machine ID6150 has a supply ability of 200 sets per month.
Action flow chart:
Model Number: ID6150
Place of Origin: Made In China
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Test height:: 50-1200mm
X-axis itinerary:: 420mm
The Impact Testing Machine product comes with comprehensive technical support and services to ensure optimal performance and functionality. Our team of experienced technicians and engineers are available to provide assistance with installation, calibration, and maintenance of the equipment. We also offer training services to help users become proficient in operating the machine and interpreting test results.
In addition, we provide troubleshooting and repair services to quickly address any issues that may arise during the lifespan of the product. Our goal is to minimize downtime and keep the machine running at peak performance. We also offer upgrade and retrofit services to keep the product up-to-date with the latest technology and industry standards.
Our technical support and services are backed by a comprehensive warranty and service agreement, providing peace of mind to our customers. Contact us for more information on our technical support and services for the Impact Testing Machine product.
Product Packaging:
The Impact Testing Machine will be carefully packaged in a sturdy cardboard box with ample padding to prevent damage during shipping. The machine itself will be securely wrapped in protective foam and any other delicate components will be individually wrapped to prevent damage during transport.
Shipping:
Shipping will be handled by our trusted carriers and will be fully insured to protect against any potential damage during transit. The estimated shipping time will be provided to the customer upon checkout and will vary depending on the destination.
Q: What is the brand name of the Impact Testing Machine?
A: The brand name of the Impact Testing Machine is Infinity Machine.
Q: What is the model number of the Impact Testing Machine?
A: The model number of the Impact Testing Machine is ID6150.
Q: Where is the Impact Testing Machine made?
A: The Impact Testing Machine is made in China.
Q: What certifications does the Impact Testing Machine have?
A: The Impact Testing Machine has CE and ISO certifications.
Q: What is the minimum order quantity for the Impact Testing Machine?
A: The minimum order quantity for the Impact Testing Machine is 1.
Q: What is the packaging details for the Impact Testing Machine?
A: The packaging details for the Impact Testing Machine is clear sheet+sponge+wood carton.
Q: What is the delivery time for the Impact Testing Machine?
A: The delivery time for the Impact Testing Machine is 20-30 days after order confirmed.
Q: What are the payment terms for the Impact Testing Machine?
A: The payment terms for the Impact Testing Machine are TT, PAYPAL, Moneygram and so on.
Q: What is the supply ability for the Impact Testing Machine?
A: The supply ability for the Impact Testing Machine is 200 sets/month.
Q: Can the price for the Impact Testing Machine be negotiated?
A: Yes, the price for the Impact Testing Machine is negotiable.
