| Miejsce pochodzenia: | Made In China |
| Nazwa handlowa: | Infinity Machine |
| Orzecznictwo: | CE ISO |
| Numer modelu: | ID6150 |
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | Negotiate |
| Szczegóły pakowania: | Clear sheet+sponge+wood carton |
| Czas dostawy: | 20-30 days after order confirmed |
| Zasady płatności: | TT PAYPAL Moneygram and so on |
| Możliwość Supply: | 200 sets / month |
| Wysokość testowa:: | 50-1200mm | Zasilanie robocze:: | AC220V 2A 50Hz |
|---|---|---|---|
| Trasa osi X:: | 420 mm | Trasa w osi Y:: | 300 mm |
| Zakres prędkości osi Z:: | 1-200 mm/s | Wydajność instalacji:: | 1200 W |
| Zakres prędkości osi Y:: | 1~100 mm/s | Nazwa produktu: | Trójosiowa automatyczna maszyna do badań uderzeń kulkowych |

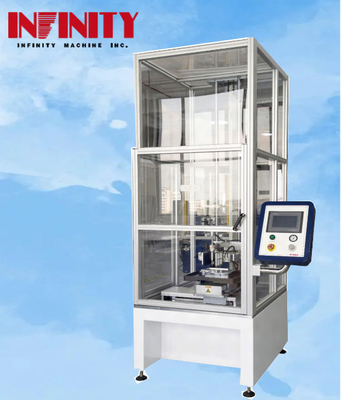

±1mm Height Error Impact Testing Machine for AC220V 2A 50Hz Working Power Supply
The equipment size of the Three-axis Automatic Drop Ball-impact Test Machine is 1140×1200×2700mm, and it weighs about 530 Kg. With its sturdy construction and durable materials, this Drop Ball-impact Tester is built to withstand harsh testing conditions and deliver accurate results consistently.
The X-axis itinerary of the Three-axis Automatic Drop Ball-impact Test Machine is 420mm, allowing for precise and repeatable testing of materials at various angles and impact points. The machine is equipped with an acrylic ball that weighs 160g or as specified, making it ideal for testing the impact resistance of a wide range of materials.
The Three-axis Automatic Drop Ball-impact Test Machine is easy to operate, and its user-friendly interface allows for quick and efficient testing of materials. It is designed to meet international standards, ensuring that the results obtained are accurate and reliable. With its advanced features, this Drop Ball-impact Tester is an indispensable tool for any laboratory, research facility, or manufacturing plant.
In summary, the Three-axis Automatic Drop Ball-impact Test Machine is a high-quality and reliable tool that is ideal for testing the impact resistance of various materials. Its sturdy construction, precise testing capabilities, and user-friendly interface make it an indispensable tool for product development, quality control, and research purposes. Whether you are testing plastic, glass, ceramics, or metals, this Drop Ball-impact Tester is the perfect solution for all your testing needs.
Device control interface:
| Product Name: | Three-axis Automatic Drop Ball-impact Test Machine |
| Equipment Size: | 1140×1200×2700mm |
| Application: | The Machine Adopts PLC Control Mode, The Suction Nozzle Uses Vacuum Negative Pressure, Holding Different Sizes Of Steel Balls, Press The Drop Button, The Suction Nozzle, The Steel Ball Will Be Used As Free Fall Test, Impact The Surface Of The Sample, And Test The Impact Resistance Of The Sample, Which Is Suitable For The Impact Test Of Mobile Phone, Tablet, Audio And Other Electronic Products. |
| Y-axis Velocity Range: | 1~100mm/s |
| X-axis Speed Range: | 1~100mm/s |
| Height Error: | ±1mm |
| Working Power Supply: | AC220V 2A 50Hz |

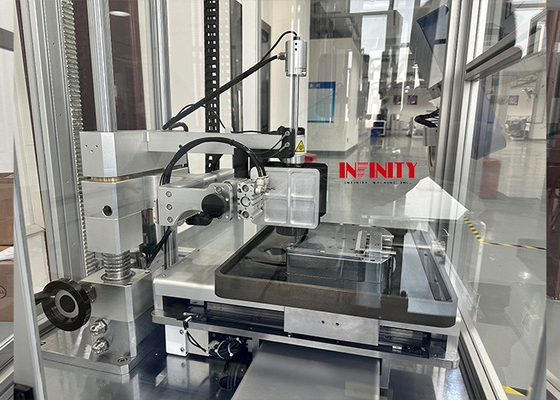

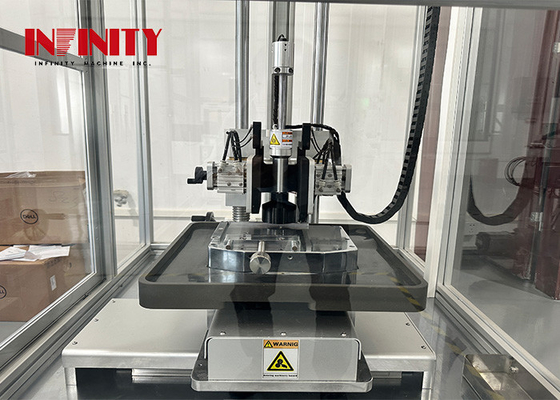

| Features: | The Equipment Uses Vacuum Adsorption Method To Absorb Steel Balls, Which Is More Accurate Than The Mechanical Claw Drop Method. At The Same Time, With The Integrated High-speed X-Y Platform, It Can Be Programmed To Realize Automatic Multi-point Cycle Test And Improve The Test Efficiency. X, Y And Z Axis Are Driven By Japan Panasonic Servo Motor, Precision Ball Screw Drive, Low Noise And Durable Use. Language Has Simplified / English Interface, Suitable For Global Customers. Software Operation Interface Is Simple And Easy To Operate. The Program Has A Designed Anti-stay Function To Ensure The Accuracy And Safety Of Each Test. Unique Automatic Reset And Automatic Pickup Function, Can Realize Unattended And Automatic Cycle Test. According To The Conventional Test Setting Parameters, The Steel Ball Impacts On The Sample During Starting And Running, And The Steel Ball Springs And Is Clamped By The Splint To Prevent Secondary Impact On The Sample. When The XY Platform Is Positioned At The Position Of The Cone Hole And The Ball Coaxis, The Cylinder Is Released And Drops The Steel Ball, And The Steel Ball Is Automatically Reset To The Center Of The Cone Hole. After The Z Axis Drops The Ball, The Cycle Is Executed. The Whole Machine Adopts Floor Structure Design, The Operation Panel Can Rotate, So That The Operator Closer To The Test Area, More Convenient Sample Loading And Unloading. The Equipment Provides The Perfect Fault Detection Mechanism Of The Operation State, And Provides The Corresponding Error Information Prompt, And Conducts Real-time Detection And Processing Of Servo Failure, Sensor Fault, X, Y And Z Axis Limit Fault, So As To Maximize The Protection Of Personal And Equipment Safety. The Device Is Equipped With Infrared Laser Function, Which Can Accurately Locate The Position Of The Landing Point And Facilitate The Tester To Accurately Determine The Test Position. The Test Formula Is Stored In The ROM Of The System, Which Is Simple And Convenient To Read And Change The Test Position. |
| X-axis Itinerary: | 420mm |
| Y-axis Itinerary: | 300mm |
The machine adopts PLC control mode, the suction nozzle uses vacuum negative pressure, holding different sizes of steel balls, press the drop button, the suction nozzle, the steel ball will be used as free fall test, impact the surface of the sample, and test the impact resistance of the sample, which is suitable for the impact test of mobile phone, tablet, audio and other electronic products.
Action flow chart:

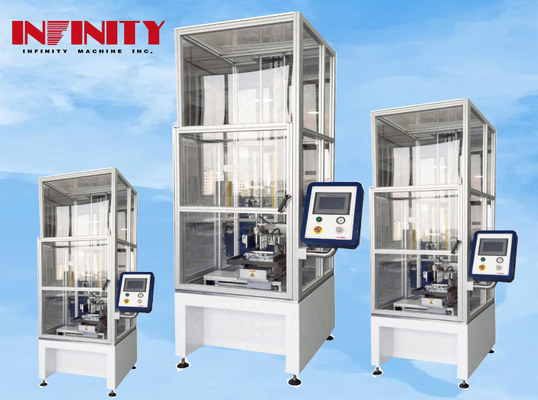

Introducing the Infinity Machine ID6150 Drop Ball-impact Tester , a three-axis automatic drop ball machine designed to test the impact resistance of various electronic products.
Manufactured by Infinity Machine in China , this product is certified by CE and ISO standards, ensuring its quality and reliability.
The machine adopts PLC control mode, and the suction nozzle uses vacuum negative pressure to hold different sizes of steel balls. Press the drop button, and the suction nozzle will release the steel ball as a free fall test that impacts the surface of the sample.
The Y-axis itinerary of this machine is 300mm, and it has a Y-axis velocity range of 1~100mm/s. The plant capacity is 1200Ｗ.
Our minimum order quantity is 1, and the price is negotiable. We offer clear sheet+sponge+wood carton packaging, and our delivery time is 20-30 days after order confirmation. Payment terms accepted are TT, PayPal, Moneygram, and others. Our supply ability is 200 sets per month.
This Three-axis Automatic Drop Ball Machine is suitable for the impact test of mobile phones, tablets, audio, and other electronic products. Contact us today to customize your order.
Our Impact Testing Machine product comes with comprehensive technical support and services to ensure optimal performance and longevity. Our team of experienced technicians is available to provide on-site installation and training, as well as ongoing maintenance and repairs. We also offer calibration services to ensure accurate and consistent results, and can provide customized testing solutions to meet specific customer needs. In addition, our customer service team is available to provide prompt and helpful assistance with any questions or issues that may arise.
Product Packaging:
Shipping:
Q: What is the brand name of the impact testing machine?
A: The brand name of the impact testing machine is Infinity Machine.
Q: What is the model number of the impact testing machine?
A: The model number of the impact testing machine is ID6150.
Q: Where is the impact testing machine made?
A: The impact testing machine is made in China.
Q: What certifications does the impact testing machine have?
A: The impact testing machine has CE and ISO certifications.
Q: What is the minimum order quantity for the impact testing machine?
A: The minimum order quantity for the impact testing machine is 1.
Q: What is the price of the impact testing machine?
A: The price of the impact testing machine is negotiable.
Q: What are the packaging details for the impact testing machine?
A: The packaging details for the impact testing machine are clear sheet+sponge+wood carton.
Q: What is the delivery time for the impact testing machine?
A: The delivery time for the impact testing machine is 20-30 days after order confirmed.
Q: What are the payment terms for the impact testing machine?
A: The payment terms for the impact testing machine are TT PAYPAL Moneygram and so on.
Q: What is the supply ability for the impact testing machine?
A: The supply ability for the impact testing machine is 200 sets / month.
