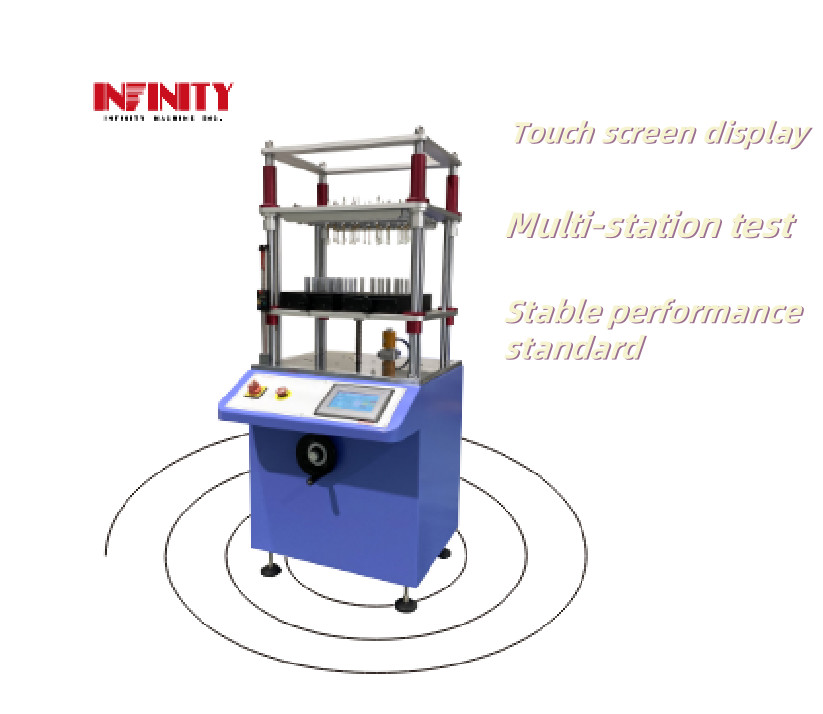

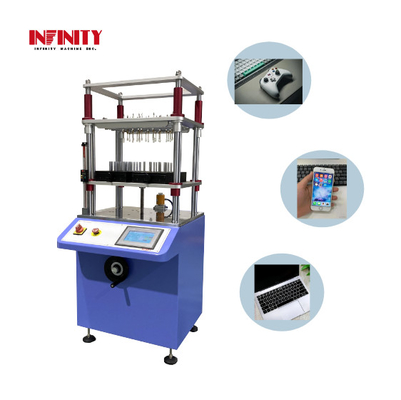

Low Noise High-speed Notebook Keyboard Button Testing Machine with Panasonic Servo Motor

       Low Noise High-speed Notebook Keyboard Button Testing Machine with Panasonic Servo Motor

                                                                                        Model Number :IN-3302

Application:

The device is used for computer keyboard Keyboard, Note-book keyboard, mobile phone, calculator, e-book, electronic dictionary, game controller, remote control and other electronic products.

Features:

• The Japanese Panasonic was used^®Seromotor + SHIMPO^®Planetary speed reducer drive, low noise, durable use;
• Using the load adjusting probe hitting button, and equipped with a special probe load correcting table and electronic weight correcting the load adjusting probe output, the striking force can be accurately controlled and the mechanical fatigue life of the key can be truly reflected.
• The machine adopts Japan THK® high steel bearing steel as support, Japan THK® linear bearing transmission, durable use; The test table is made of aluminum Anodized treatment, wear-resistant surface texture, equipped with porous for keyboard clamping positioning;
• Japan OMRON®7"TFT color touch screen +Mitsubishi® PLC control, English and Chinese operation interface, two test modes: continuous test mode -- rapid continuous test mode; Intermittent test mode -- to meet the test requirements of key press hold time, you can set the press hold time 0.1~99.99sec, rise (head off the button) residence time 0.1~99.99sec. Test times 0~99999999 times can be set, with power failure memory function, reach the set number of automatic stop. Test speed: 60~360 times /min in continuous test mode, 5~100 times /min in intermittent test mode.
• Using high rigidity guide groove, can be moved back and forth, the measuring head can be moved left and right, basically can measure any keys.
• Built-in force sensor, can real-time test head pressure, more accurate and convenient.

Key parts:

Specification parameters:

Equipment details description:

1: Equipment composition

2: Fixed products

3: Rail guide impact assembly

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Keyboard Button Tester will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
