| Product name: | Paper and Cardboard Interlayer Bonding Strength Testing Machine | Model: | IZ1012 |
|---|---|---|---|
| Specimen size: | 25.4*25.4mm | Sample holding force: | 0~400N (Adjustable) |
| Impact Angle: | 90° | Release mode: | Fully automatic release |
| Power: | Electronic | Warranty: | 1 Year |

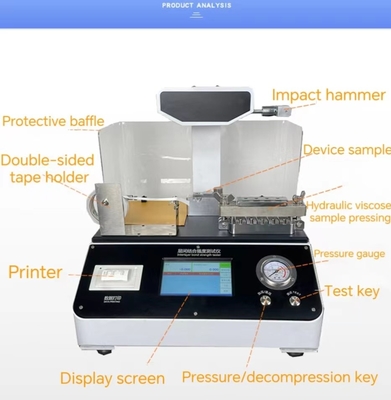

ASTM T569 pm-00 Standard Corrugated Cardboard Interlayer Bonding Strength Tester
Model: IZ1012
Application :

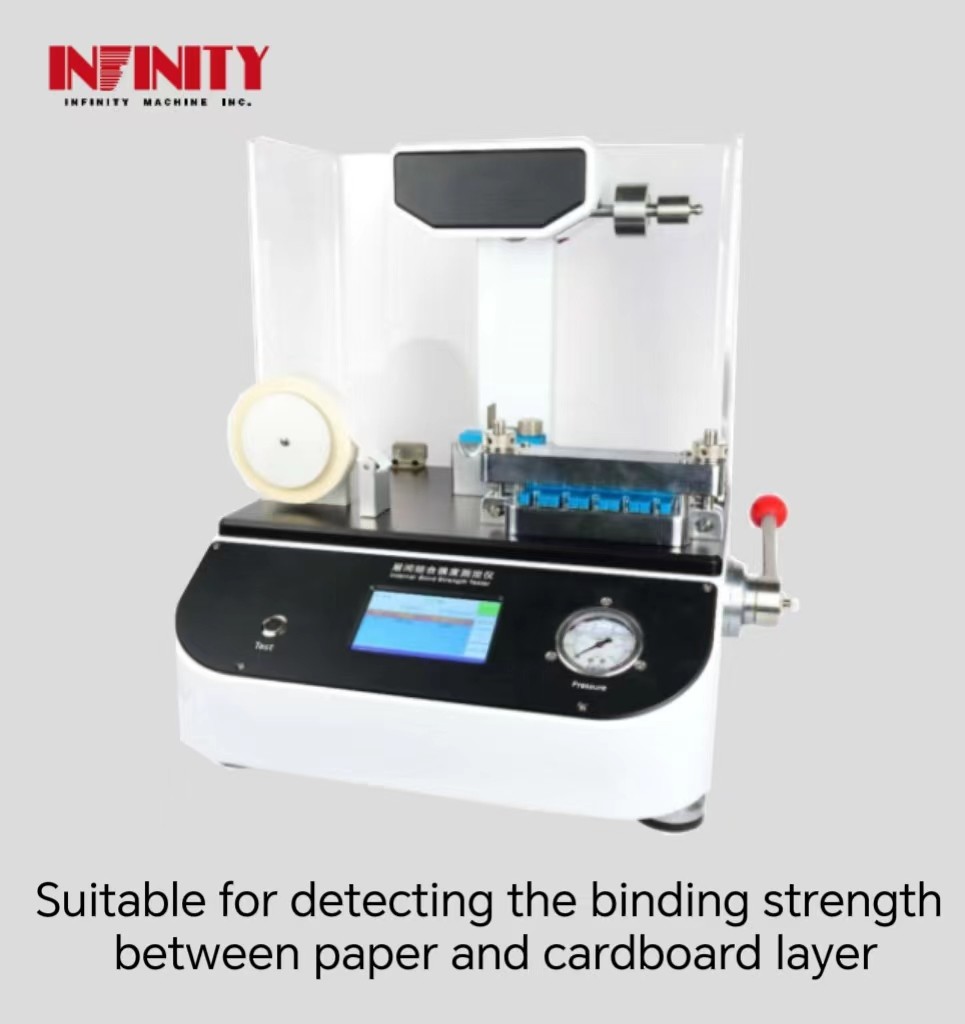

The equipment is suitable for detecting the binding strength between paper and cardboard layer (between the paper layer and the combination within the paper), and can be used to detect the internal binding strength of paper composite materials, film composite materials and other sheet materials.
Test standards:
GB/T 25203,ASTM T569 pm-00
Specification parameter:
| Specimen size: |
25.4*25.4mm |
| Sample holding force: | 0~400N (Adjustable) |
| Impact Angle: | 90° |
| Resolution ratio: | 0.001lbf/in² |
| Release mode: | Fully automatic release |
| Measuring range: | Grade A file: (0~500)J/M²; Class B: (500~1000) J/M² |
| Indicating error: | The A file: ± 1 J/M²; The B gear: ± 2 J/M² |
| Unit: | J/M²,lbf/in² interchange |
| Interface: | 3.2in LCD display, real-time display of test data |
| Printout: | Modular integrated thermal sensitive printer |
| Equipment size: | 500m×400cm×650mm |
| Weight: | 70KG |
| Power: | AC220V 50Hz (or specified) |
Special Sampler (Optional) :
Sampling size: 25.4mm * 140mm Parallel of two long sides: 0.015mm
Thickness of sampling: (0.05~1.2) mm Overall dimension: About 580 * 150 * 620mm
Weight: 15kg
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Package Test Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Package Test Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
