| Miejsce pochodzenia: | Wyprodukowano w Chinach |
| Nazwa handlowa: | Infinity Machine |
| Orzecznictwo: | CE ISO |
| Numer modelu: | ID6002 |
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | Negotiate |
| Szczegóły pakowania: | Przezroczysta folia + gąbka + karton drewniany |
| Czas dostawy: | 20-30 dni po potwierdzeniu zamówienia |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Możliwość Supply: | 200 zestawów miesięcznie |
| Nazwa produktu: | Maszyna do cyfrowego badania uderzeń IZOD | Model: | ID6002 |
|---|---|---|---|
| Normy: | ASTM D256, ISO 180, GB/T 1843. JIS K7110 | Pojemność: | Standard: 1J, 2,75J, 5,5J; Opcjonalnie: 11J, 22J |
| Kąt testowy: | 150° | Szybkość uderzenia: | IZOD: 3,46 m/s |
| Władza: | Elektroniczny | Gwarancja: | 1 rok |

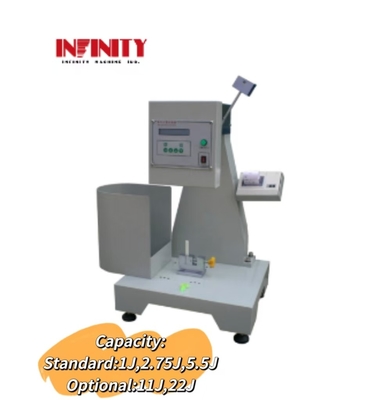

ISO 180 Standard 11J 22J IZOD Digital Impact Test Machine for Ductile Materials
Model:ID6002
Applicaion:

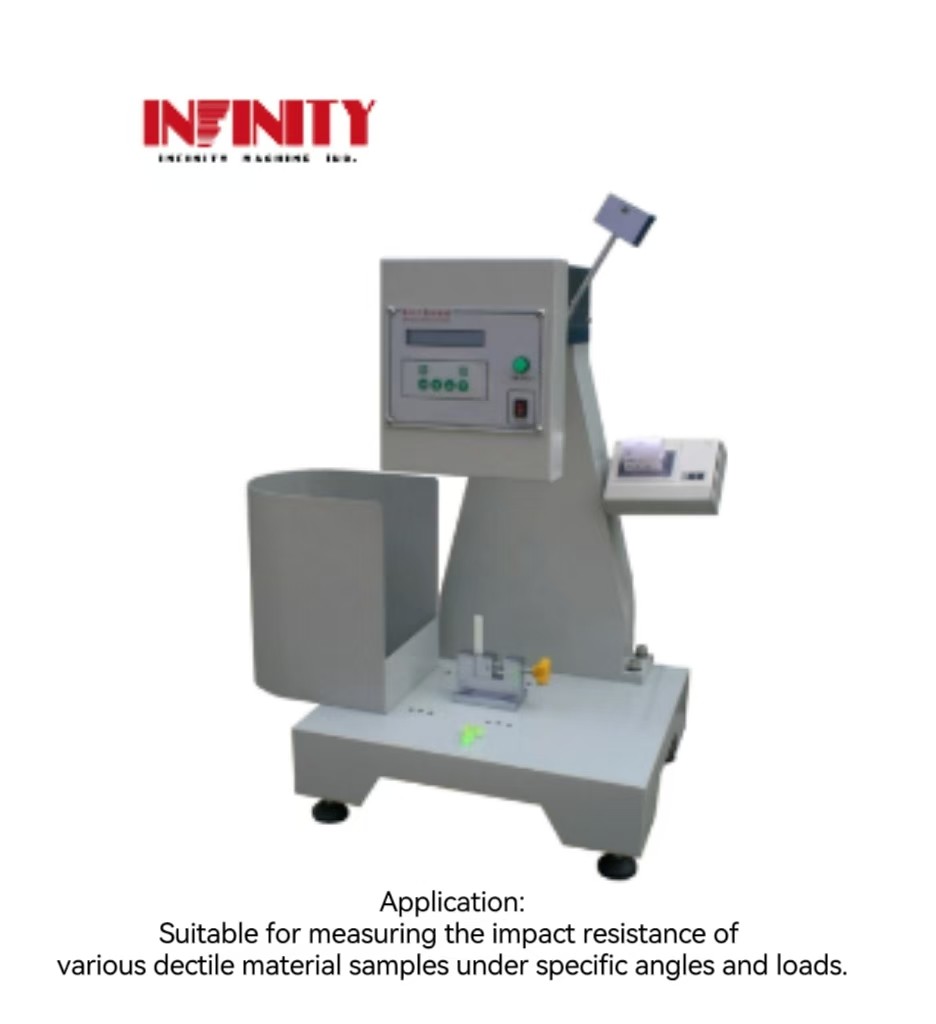

This equipment is used to measure the impact resistance of various tough material specimens when subjected to impact at specific angles and loads.
Meet test standards:
IZOD: ASTM D256, ISO 180, GB/T 1843. JIS K7110
Features:
Specifications:
|
Model |
ID6002 |
|
Capacity |
Standard:1J, 2.75J, 5.5J；Optional:11J, 22J |
|
Test Angle |
150° |
|
Impact Speed |
IZOD: 3.46m/sec |
|
Effective length of pendulum |
IZOD: 32.7cm |
|
Impact angle error |
0.1° |
|
Energy accuracy |
0.001 J |
|
Energy unit |
Kg-mm, kg-cm, kg-m, Ib-ft, Joule(N-m) |
|
Size(WxDxH) |
680x410x760mm |
|
Weight |
Around 90kg |
|
Working power supply |
AC220V 50Hz 3A or specify |
Related product recommendation:
1.Packaging inclined impact testing machine:Suitable for product packaging boxes, simulate the inclined impact test caused by packaging tilting and sliding during transportation or dock handling to test the reliability of the packaging.
2.Three axis automatic ball drop impact testing machine:This machine adopts PLC control mode, and the suction nozzle uses vacuum negative pressure to clamp steel balls of different sizes. When the drop button is pressed, the suction nozzle clamps and instantly releases the steel ball. The steel ball will undergo a free fall test to impact the surface of the sample and test its impact resistance. It is suitable for impact testing of electronic products such as mobile phones, tablets, and speakers.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Impact Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Impact Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
