| Miejsce pochodzenia: | WYPRODUKOWANO W CHINACH |
| Nazwa handlowa: | Infinity Machine Inc. |
| Orzecznictwo: | ISO |
| Numer modelu: | IC2274 |
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | Negotiate |
| Szczegóły pakowania: | Przezroczysta folia + gąbka + karton drewniany |
| Czas dostawy: | 35 ~ 45 dni po potwierdzeniu zamówienia |
| Zasady płatności: | T/T |
| Możliwość Supply: | 50 zestawów miesięcznie |
| Nazwa produktu: | Maszyna do badania skrętu kabla robota | Model: | IC2274 |
|---|---|---|---|
| Aplikacja: | Automatyczna maszyna do testowania skręcania kabli jest odpowiednia do testów skręcania kabli wieloż | Standardy: | Spełnia normy takie jak China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables for Industria |
| Stacja robocza: | 4 | kąt orsji: | 1 ~ ± 180° / ± 270° / ± 360° (konfigurowalny) |
| Prędkość testowa: | 1 ~ 30 cykli/min (regulowane) | Moc: | AC220V lub AC120V |
| Gwarancja: | 1 rok |

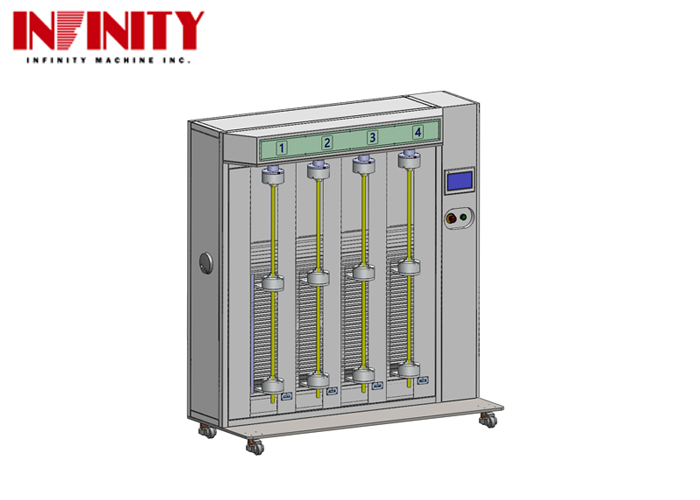

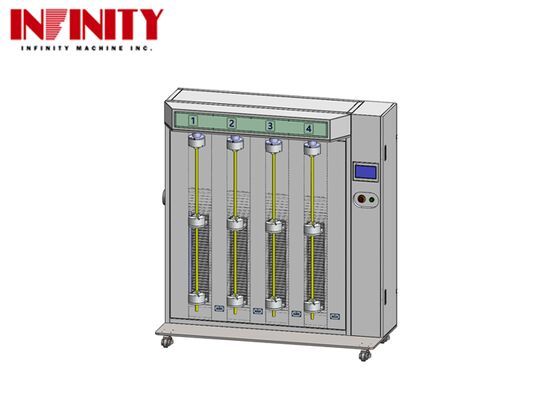

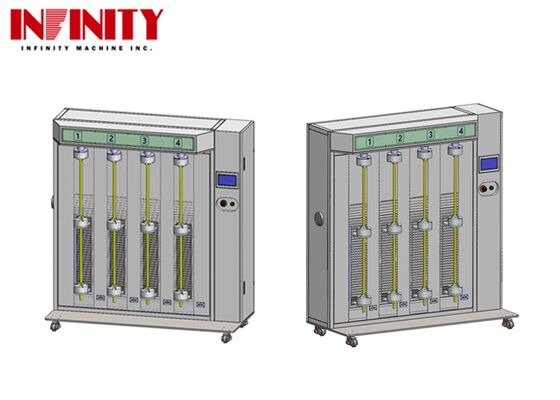

This robotic cable torsion test machine is designed for comprehensive testing of multi-core cables and communication cables in compliance with CRIA 0003.2-2016 standards for industrial robot special cables.
The cable torsion testing machine is specifically designed for torsion testing of multi-core cables and communication cables. It performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.
| Item | Specification |
|---|---|
| Test Station | 4 stations (Customizable) |
| Sample Diameter | 3~15mm (Customizable) |
| Specimen Test Length | 500~1000mm (Customizable) |
| Sample Torsion Speed | 1~30 cycles/min (Adjustable) |
| Torsion Angle | 1~±180° /±270° / ±360° (Customizable) |
| Control Method | Touch screen control |
| Counting Digits | 0-99999999 cycles |
| Motor | Servo motor (Japan) |
| Machine Weight | Approx. 400 Kg |
| Working Power Supply | AC220V, 50Hz ; AC120V, 60Hz (specifiable) |
| Equipment Power | 1.8KW |
| Equipment Dimensions | W1700*D740*H1700mm |
Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
Contact our sales team for personalized product recommendations based on your specific testing requirements.
